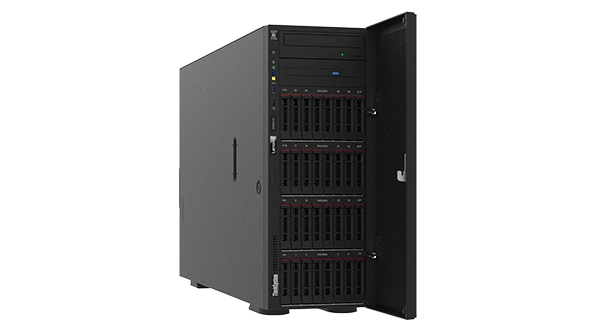

Lenovo ThinkSystem ST650 V2 server Tower (4U) Intel Xeon Silver 4310 2.1 GHz 32 GB DDR4-SDRAM 750 W
SKU
7Z74A031EA
Login for pricing
Out Of Stock - Contact for availability
Intel Xeon Silver 4310 (18MB Cache, 2.1GHz), 32GB DDR4-SDRAM (3200MHz), LAN (Broadcom 57416), 9350-8i, 750W, No OS
- No OS
- Intel Xeon Silver 4310 (18MB Cache, 2.1GHz)
- 32GB (3200MHz) DDR4-SDRAM (1 x 32)
| Processor family | Intel Xeon Silver |
|---|---|
| Chassis type | Tower (4U) |
| Internal memory type | DDR4-SDRAM |
| Redundant power supply (RPS) support | Yes |
| SKU | 7Z74A031EA |
| EAN | 5054444553412 |
| Manufacturer | Lenovo |
| Availability | Out of Stock |
| Product Family | ThinkSystem |
| PDF URLs |
View PDF |
Workload-optimized support
The ThinkSystem ST650 V2 represents the next wave in highly configurable tower systems to support new use cases, technology, and workload optimization for the modern enterprise. New 3rd generation Intel® Xeon® processor Scalable family CPUs offer outstanding performance and memory capacity for large database and virtual machine deployments, with support for PCIe Gen4 networking reducing data bottlenecks throughout the IT environment.
Accelerate data insights
ThinkSystem ST650 V2 is future proof with 8 single-width (DW), 4 double-width (DW), or a combination of 4 SW and 4 DW GPUs. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST650 V2 ideal for enterprise-class AI and VDI workloads bringing supercomputing power to the remote office.
Configuration flexibility
Significant improvements in onboard storage capabilities enable the ST650 V2 to tackle immense data growth in burgeoning IT environments, notably in remote office and edge use cases. Support for up to 16 hyper-fast NVMe drives for a total of 32x 2.5-inch drives enables rapid data ingest capabilities to address the explosion of internet of things (IoT) devices and sensors feeding data growth.
The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem ST650 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST650 V2 and consider its use in IT solutions.
This product guide provides essential pre-sales information to understand the ThinkSystem ST650 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST650 V2 and consider its use in IT solutions.
| Processor | |
|---|---|
| Processor cache | 18 MB |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Number of processors installed | 1 |
| Processor model | 4310 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Supported RAID controllers | 9350-8i |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Internal drive bays | 8 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Rack mounting | Yes |
| Chassis type | Tower (4U) |
| Product colour | Black |
| Performance | |
|---|---|
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies installed | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating altitude | 0 - 3050 m |
| Management features | |
| Performance management | XClarity Enterprise |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack mounting | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Tower (4U) |
| Weight & dimensions | |
| Width | 175 mm |
| Height | 462 mm |
| Depth | 734 mm |
